Hot New Product Cadillac Series Car Door Lock System With Soft Close Function

Hot New Product Cadillac Series Car Door Lock System With Soft Close Function

Name: Hot New Product Cadillac Series Car Door Lock System With Soft Close Function
Brand: kmautospace
SKU: ESD-CADILLAC
Availability: InStock
Rating: 5 (1 reviews)

Item No.: ESD-CADILLAC

1. Intelligent: Push the door to the half-locked state, and the
system will automatically complete the remaining
door closing actions.
2. Safety: The 6-9mm position automatically closes and
locks. It will not be easily blocked during the
closing
***YOU CAN GET MORE PRODUCT DETAILS FROM DOWNLOAD BUTTON BELOW

Application: Car Door

Price: $410 (Sample), 20% off for 2 or more sets

MOQ: 1

Delivery Time: In stock: 1-2 working days / Out of stock: 3-5 working days

Payment Terms: PayPal, Alibaba, Money Gram, T/T

Supply Ability: 5000 sets / month

INQUIRY PDF Format

Buy At Alibaba

Description Feature & Advantages Installation Precautions Video & FAQ

1. What is car door soft close?
The electric suction door is a safe and comfortable intelligent body control device in the car door lock system. When the door is not closed, the door touches the body, and the door will gently and automatically close. The door lock system automatically tightens the half-lock position to the full-lock position to complete the safe door closing action.

2. Why do we choose a electric suction door?
★Loud door closing noise makes people's eardrums and body uncomfortable (especially the old, young, pregnant and sick).
★If you're worried the door isn't closed properly, pull it with your hand after you close it.
★Change the traditional car habit of slamming the door and violently closing the door.
The car owner only needs to gently close the car door elegantly, and then the car door can be easily closed, which is not only safe, but also has a very smart and comfortable experience.
★Silent Drive Safe And Noiseless
The motor drive is used to pull the motor door lock and automatically it. Close the door gently and lock with a slight sound. Say good-bye to closing the door vigorously.

3. MODEL LIST

CAR MODEL	YEAR	PRODUCT NO.
ATS / ATSL	2015-2019	KDLKATS-501 BK01-501
CT4	2020+
CT6	2017-2022
XTS	2017-2022
XT6	2019-2022
XT5	2017-2022
XT4	2018-2022
Escalade	2017-2022

INTELLIGENT ELECTRIC SUCTION DOOR

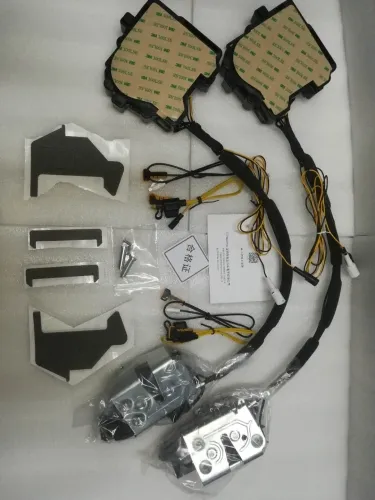

4. Product Show

5. PRODUCT PARAMETERS
Product Structure: 2 modules, 6 components, more than 150 parts

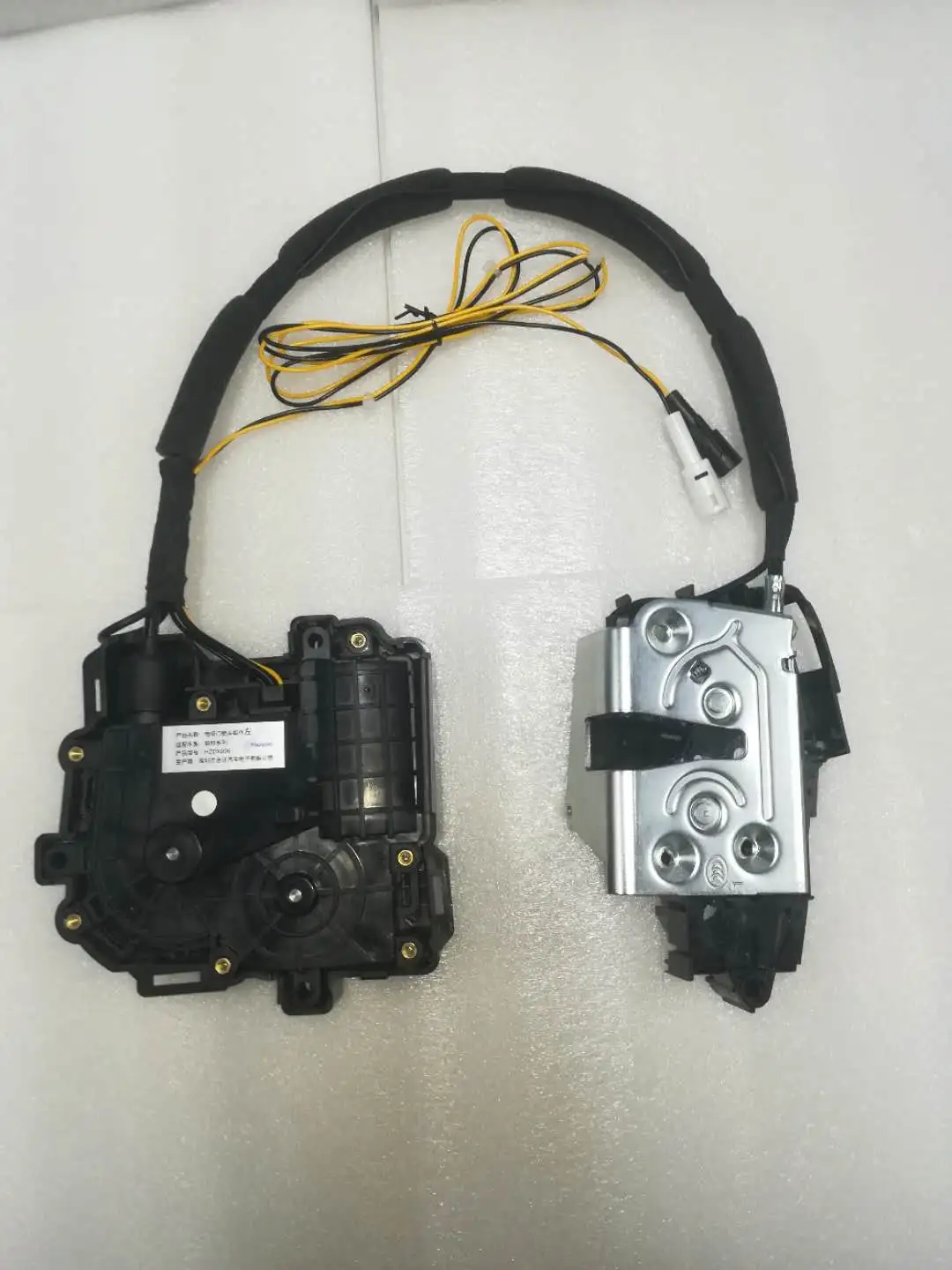

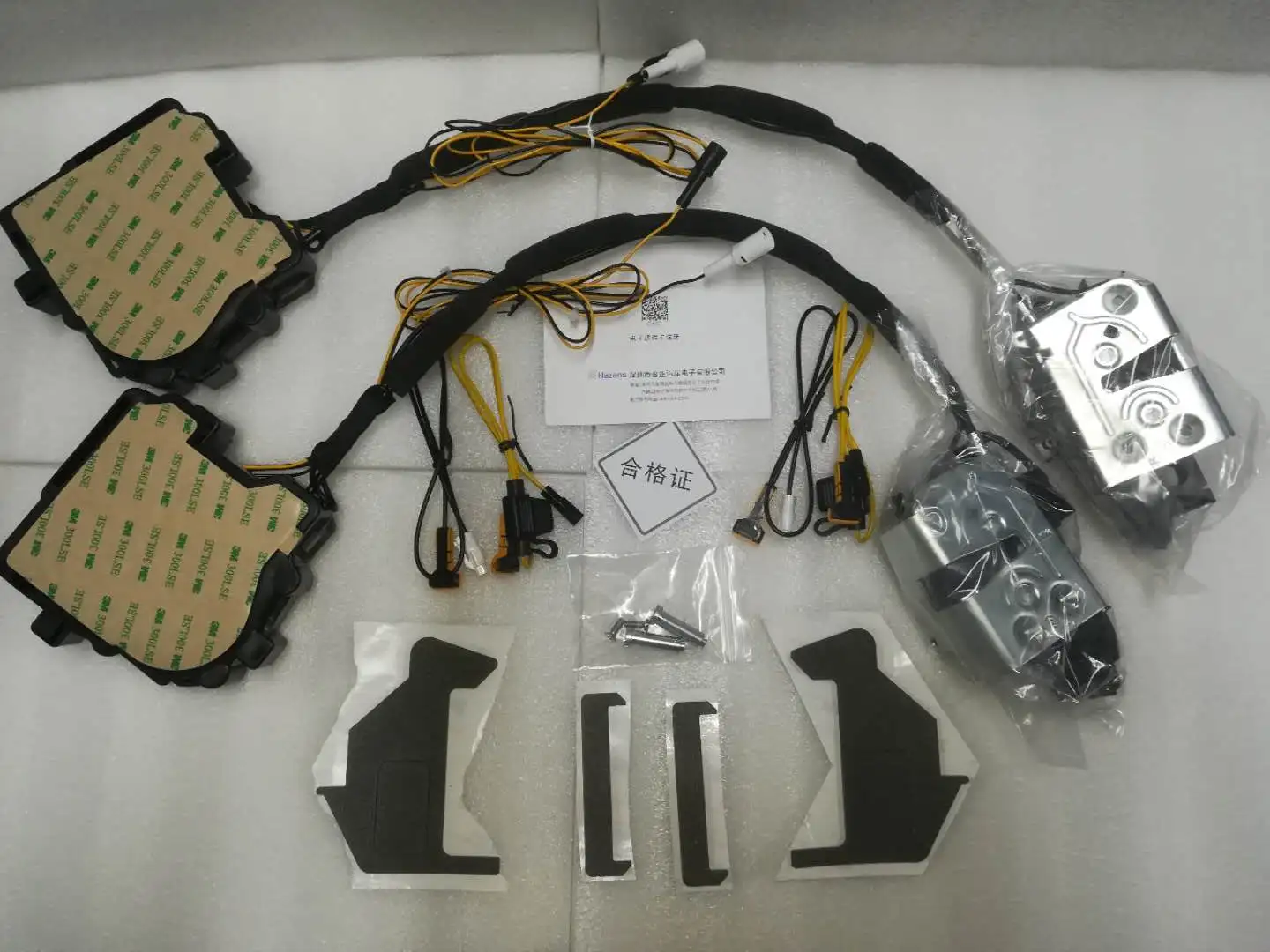

6. Main Components of Accessories

7. Core Components and Parameters

COMPONENT	PARAMETER	COMPONENT	PARAMETER
Motor	MABUCHI FK-280-5C	Working Voltage	DC 12V (9-16V)
Detection Sensor	HALL MT1101	Stand-By Current	≤3.0mA
Detection Switch	MARQUART/ALPS- SPVQ810801	Working Current	≤6.0A
MCU Main Chip	STC8A8K64S4A12	Stall Current	≤8.0A（MAX）
Driver IC	DRV8701	Pull-in Noise	＜60dB（A）
Transmission Gear	Power Metallurgy/Aviation Materials PM5.1	Suction Force	Half Lock 7-170N / Full Lock 150-250N
Latch / Lock	No.45 Steel Lagging	Temperature / Humidity Range	-40℃/2% - +85℃/90%RH
Load Strength	Portrait 11000N，Horizontal 9000N	Product Life	≥50000 times

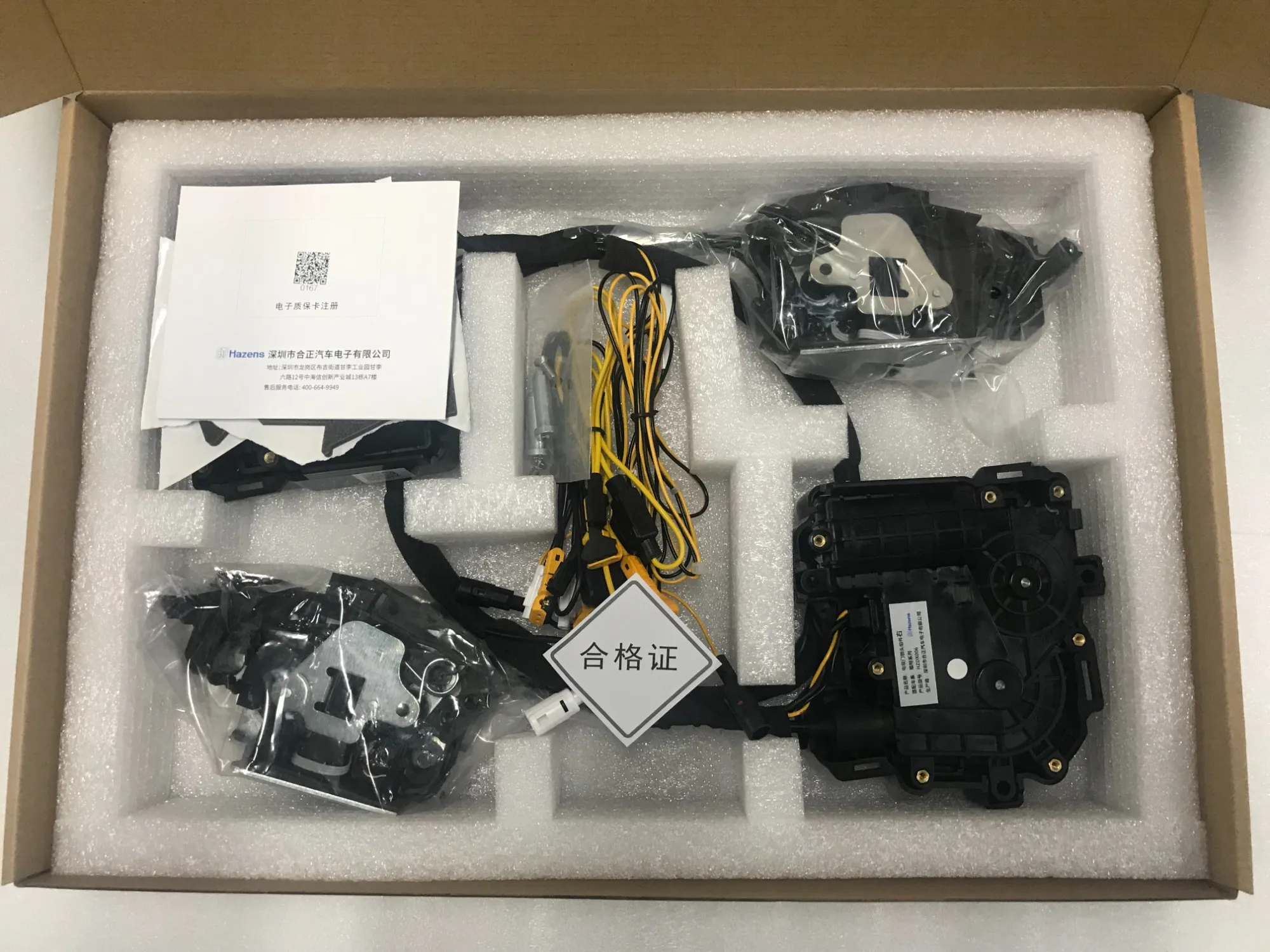

9. Packaging & Shipping

Feature	Description
Intelligent	Push the door to the half-locked state, and the system will automatically complete the remaining door closing actions.
Safety	The 6-9mm position automatically closes and locks. It will not be easily blocked during the closing process, and the door can be closed safely.
Comfortable	Gently close the car for increased comfort without any noise.
Elegant	Gently pull and close the door, making the closing action more elegant.
Noble	High-end configuration of luxury cars, get a distinguished car experience.

1. ADVANTAGES
( Major advantages of car door soft close 2.0:)

①Second Generation Intelligent Suction
The electric suction has a foreign matter extraction buffering time during the suction from the first stage to the second stage. And the visual performance will pause for 0.5 seconds during the suction process.

②Suction Emergency Opening
The door can be opened by pulling the door handle at any position during the suction process.

③Motor Active Protection
If the single door is closed for 30 times in any five-minute period, the motor will be actively shut down. The door needs to remain closed for one minute to restore the suction function.

④Secondary Unlock Protection
When the outer door handle is opened for more than 4 seconds at any time, the electric suction mechanism automatically realizes the second unlocking (repeating the reverse rotation between the transmission gears.

⑤Exclusive Patented Technology
SA Driving Clutch – patented.

2. EXPERIENCE SCENE
(APPLICATION SCENARIOS)

·Close the door gently, care for the elderly and children.
·Close the door softly to create a quiet atmosphere and not frighten the baby.
·Sweet sleep, how can I bear to disturb.
·Difficult to close in a narrow parking lot.
·Close the door lightly for leaders, ladies and partners, showing elegance and dignity, and leaving a good impression.
·Gently close the door to extend the life of the car.

★ People in the car
Traditional door closing needs to be vigorously closed, loud noise, people's body also feel uncomfortable, while long-term vigorously closed will affect the vehicle's sound isolation effect, and even the door mechanism changes, causing the door overall subsidence or positioning bolt deformation, displacement, so that your car in the late closing need more than once.

★Business Person
Like the electric tail door, the suction function of the electric suction door, quiet, more suitable for business riding, convenient, generous. With the addition of our electric suction door, the overall vehicle in business use appears to be more classy.

★Car owners with children or the elderly
1). Traditional doors need to be vigorously closed, when you hold a child or the elderly in the car often will not close the door, after the installation of electric suction door, as long as gently close the door can be intelligent suction, to ensure the safety of our passengers.

2). If there are children in the back seat, vigorously close the door will produce a great deal of noise, but sitting inside the car is a sealed space, harsh noise on children's eardrums and health will cause a certain degree of impact.

3). daily we common old people and children often can not close the door when getting off, when it rains, we also need to get off in the rain to close the door, causing great inconvenience to travel.

3. COMPANY INFORMATION
3.1 Company Advantages

1). Independent R&D ream
Each product has a dedicated team to carry out independent R&D design. The design process is systematic, refined and constantly overcome technical difficulties. The products adopt the latest technology to ensure that the products occupy a leading position in the R&D technology field of the market, allowing agents and distributors to grasp the initiative of the market.

2). Efficiently control product quality
Control from the aspects of feed inspection, production process, factory inspection and after-sales service to ensure the overall quality of the product. The workshop strictly distinguishes the inspection products, qualified products and defective products to prevent mutual confusion. The responsibility for each process is implemented.

3). Rich industry experience
Our factory has been focusing on the automotive parts industry for more than 10 years, leading the industry with new and unique product design and advanced technology. Own the experience and capabilities of pre-install to accept OEM/ODM projects.

4). Provide quality service
Since its inception, the company has always adhered to the market development as the focus, quality as the fundamental development concept and integrity-based business principles. All employees work together, work hard and actively carry out various work. In addition to quality products, we also provide excellent service to our customers. If you have any objections to us, please contact our staff. We will collect your feedback in a timely manner.

3.2 Certificates

INSTALLATION PRECAUTIONS
(Special requirements for installation)

Because the original car lock signal switch does not distinguish between positive and negative poles, but our electric door signal line must be unified pin definition standard, Therefore, when the instrument panel displays the abnormal signal that the door does not close after installing the electric suction door, you can swap the central locking plug head to plug tail for the pin definition as shown below:

Must do：Based on the structure and design principle of the original car lock，All American and German models must lock the lock to the full lock before disassembling the original car lock and assembling the electric lock(secondary lock) status (draw "√" map).The electric shock lock has been fully locked by default before leaving the factory, but it must still be confirmed before installation!

[Aftermath：Failure to follow the above requirements will result in damage to the internal parts of the original car lock.(The damage to the original car lock parts caused by failure to install as required is not covered by the electric shock lock warranty),In particular, it will cause abnormalities and damages such as deformation and displacement of the detection switch spring on the original car lock central control mechanism, resulting in failure of the lock function, abnormal alarm, and even the risk of not able to open the door! ]

POWER TAKE-OFF METHOD AND PRECAUTIONS
(Power access mode and matters needing attention)

The electric suction door has only two wiring harnesses, one yellow wiring harness, which is connected to the normal fire line of the vehicle（B+），The black wire harness connects to the vehicle ground wire（GND）

[Note：If the vehicle has a one-button lift window function, it has power supply and ground wire on the door panel.Directly use the multimeter on the door panel to determine the harness definition to take power. ]

Installation Wiring Diagram

CANLE PLACEMENT, MOTOR BOX FIXING, ETC
(Cable placement, motor box fixing and other matters needing attention)

Cable (pull rod line) Placement Precautions
(Cautions for cable (tie rod line) placement)

The original car and the cable of the electric suction lock (pictured),during the process of disassembling and installing the door panel and the car lock, try to keep the cable (rod line) smooth and avoid bending or winding, so as to avoid bending the cable due to improper disassembling and assembling, resulting in the failure of unlocking or locking of the central control.

[ The original car and the cable of the electric suction lock (pictured)，In the process of dismantling or installing the door panel and car lock, try to keep the cable (pull rod) smooth, avoid bending or entanglement, to prevent a failure that causes the central control to fail to unlock or lock by bending of the cable due to improper assembly and disassembly. ]

Motor Box Fixing Precautions

1. Stay away from the location behind the horn. Because the magnet behind the speaker will cause a certain magnetic field interference to the detection components inside the motor box, which may lead to disordered working procedures of the electric suction door.
2. Before fixing, please be sure to clean up the sundries or dust on the sheet metal and other hidden dangers that affect the bonding effect.
3. Reserve a position first and try to observe whether the position of the motor box has an effect on the glass lift stroke.
The base of the motor box is placed on the top of the anti-collision beam of the car door and pasted on the premise of not causing sharp bending of the cable.
4. After fixing the position, press the motor box for at least 20 seconds, and test the 3M adhesive to achieve the best bonding effect with the door sheet metal.

TESTING & DEBUGGING

BWM Switch Detection Board

Self-learning Feature Precautions

After the product is installed and comprehensively inspected in accordance with the "Smart Electric Suction Door Installation Quality Inspection Form", please power on and manually open and close the door 8 times or more to allow the product to learn by itself. If the product does not close during this period, please manually push the door panel After closing and opening and closing the door 8 times, it can be used normally afterwards.

Locking Bolt Debugging Precautions

After the installation test, if the front and rear doors are unbalanced (rarely or may appear on older models), you can adjust the lock bolt to achieve the best effect. Note that when adjusting the lock bolt, please be sure to fine-tune and record Good original location.

One-button Up And Down Window Function Precautions

Some vehicles have a one-button lift and window down function, pulling the window lifter switch plug may make the one-button window lift function be unable to use.

The way to restore the function is: close the door that needs to restore the automatic window lift function, and control the lift glass switch to lift the window glass to the closed position, and then continue to press and hold the window lift switch for 10 seconds, the vehicle automatically learns and resumes successfully. At this time, the one-button lift window can be used normally.

Keyless Entry Function Precautions

Some models have a keyless entry touch door handle，If the door handle is inserted and removed while the vehicle is being disassembled, the touch door handle function may be unable to ues.It can be restored by the following methods：

1. Mechanical key lock → mechanical key unlock → remote key lock → remote key unlock → vehicle start → vehicle flameout

2. Disconnect the vehicle's battery negative for ten minutes, then connect to the power source.（Have trouble with the fault code or other risks ）

TROBLESHOOTING

1. Troubleshooting For Non-Suction

1) Check if the plugs are plugged in well and re-plug them if necessary.
2) Check whether the power supply and the ground wire is connected incorrectly. Check if the wire is shorted by sheet metal cutting.
3) Check whether the two clamps of the power supply positive pole and the ground wire are in full contact with the original vehicle harness.
4) The electric suction lock has active protection function. If the number of consecutively opening and closing the door is too many, the active protection will be activated. When the protection time is up, the suction function will be automatically restored.
5) Remove the suction door lock from the door panel and continue to supply power. The motor box hands down, and do not bend the drawbar line. Use a stick tool to press the lock tongue on the lock head to simulate the door closing action, and see if the motor box can drive the lock tongue to make the pull-in action.

2. Troubleshooting Of Abnormal Alarm

1) Check whether each plug is well connected, and re-plug it if necessary;
2) Check whether the original car detection switch is deformed or damaged when the lock head is disassembled and assembled in the fully locked state;
3) Check whether the internal connecting rod of the lock head is installed in place;
4) Whether each wire is in good contact;
5) Reassemble and test again according to the "Smart Electric Suction Door Installation Quality Checklist"

If none of the above steps can make the product run, replace a suction door lock and reinstall it.

3. Troubleshooting For Abnormal Close

1) Check whether the lock tongue is fully locked or stuck, and try to unlock the lock tongue with the door handle;
2) Remove the lock head and the motor box from the door panel, let the motor box hang down naturally, place the tie rod line vertically and smoothly, and try whether the lock head can be unlocked smoothly;
3) Reassemble and test again according to the "Smart Electric Suction Door Installation Quality Checklist";

If none of the above steps can eliminate the fault, replace the product and reinstall it.

4. Troubleshooting For Abnormal Open

1) Check whether the power of the battery is normal, and whether the circuit related to the electric suction lock is normal;
2) If the door cannot be opened by the inner unlocking handle, please check whether the child lock is in the locked position, if it is in the locked position, the door can only be opened from the outer handle;
3) Pull the outer door handle and hold it for more than 4 seconds, the internal electric suction mechanism will automatically assist in unlocking;
4) Check whether there are hidden dangers of assembly quality that do not meet the standard against the "Installation Quality Checklist for Smart Electric Suction Doors";
5) If the above does not work, unplug the insurance again and wait for 5 minutes before powering on again;
6) If the vehicle is running out of power, you can take:

Option 1: Disassemble the fender on the left front wheel to see the hood cable, pull the cable to open the hood to charge the battery, and unlock it by remote control;
Option 2: Pry open the seam of the front door frame with a sharp knife, hook the wire in and hook the inner door handle to unlock and open the door (please do a good job of vehicle protection measures at the same time or ask a professional to implement it)

VIDEO

FAQ
1.Is it universal?
No, different cars have different models, please contact customer service to inform the model before purchasing.

2.Will it fit my car?
Please send us the car model number. We will help you to confirm.

3.What can you buy from us?
Electric suction door, electric tailgate,electric running board and car aromatherapy.

4.Why should you buy from us not from other suppliers?
●We are the source factory, we have an independent design and development team for electric suction doors, have a large number of user recognition, and have direct cooperation with many car manufacturers.
●24 hours online service, please feel free to contact us. Support wholesale, OEM group purchase, factory direct sales, quality and price. Provide product installation guidance and online technical guidance for product installation engineers.

5.How about your warranty?
●Return rate: The defective rate of all our items is less than 1%.
●Warranty: 12 months warranty starts from the delivery date in our factory.
Conditions and Warranty Terms:
During the warranty period, any defective products will be repaired or replaced free of charge in the next order
Products damaged or repaired, altered due to violence or carelessness are not covered by the warranty.

1. What is your terms of packing?
A: Generally, we pack our goods in neutral Gray or brown boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

2. What is your terms of payment?
A: T/T , Paypal etc. We always support LC or Alibaba payment, We'll show you the photos of the products and packages before you pay the balance.

3. How about your delivery time?
A: Generally, it will take 10 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

CONTACT US

E-MAIL : info@kaimiao-group.com

TEL : 0769-8219 8609
PHONE : +8613423189468
WECHAT / WHATSAPP : +8613423189468
