Hot Sales Electric Tailgate Lift Remote Control Automatic Trunk Opener Factory for ChangAn Cosmos

Hot Sales Electric Tailgate Lift Remote Control Automatic Trunk Opener Factory for  ChangAn Cosmos
- KaiMiao

What is power tailgate lift kits?

Hands-free power liftgate (Power tailgate lift) is a back-door system, the user of the vehicle controls the liftgate / tailgate opening and closing by pressing a key located on the dashboard or handheld or remoting the key, or by using any object operation in the corresponding region of the liftgate.


Technical Parameters:



Innovation Point:

1. Intelligent Induction: Anti-pinch force setting / Anti-collision force setting. (When the system detects the intention of the car owner of manually open and close the door, power liftgate system will be in the auxiliary state automatically.
2. Intelligent Speed Control: Through intelligent control such as slow start and decelaration, it can ensure that the tailgate runs smoothly and impact of the system is slowed down. At the same time, the lift of the motor is prolonged.
3. Abnormal Scene Processing: Double pole load balancing. When a pole fails, the door can be prevented from being deformed. When the tailgate fails in a special scene, the system will automatically adjust the closing effort.
4. Fault Detection: When the drive circuit is faulty (low-voltage alarm, over-current protection), it will automatically cut off / automatically recover to ensure the safety of vehicles and equipment.
5. Ultimate Energy Saving: Ultra-low quiescent current (Standby Current: 1 mA). It can avoid that the vehicle can not start without power due to long-term parking.




Feature:

Function	Description
Remote Control	The car owner can open and close the tailgate by pressing the tailgate of the vehicle, the remote control car key or using the foot sensing operation in the corresponding area of the tailgate, so as to avoid the object storage easily and quickly when the door is opened due to the inconvenience of holding too many objects into vehicle.
Multi-style Control	A light touch on the button on tailgate,closes as you require.When you are in driver’s seat,press the button tocontrol tailgate easily.And we also offer foot sensor as an option,When you have no free hands to switch the tailgate, you can open it with your foot.
Intelligent Anti-Pinch Function	When the tailgate is closed or opened , the sensor automatically senses whether there is an obstacle.When the tailgate opens or closes and encounters an obstacle, the tailgate moves in the opposite direction,effectively preventing the child from being injured or damaging the vehicle.
Emergency Blocking Function	In an emergency, you can pause opening or closing the tailgate. During the opening or closing ofthe electric tailgate kit, the tailgate can be stopped at any time by the remote control key or the tailgate of the vehicle, and can be controlled as desired.
Height Memory Function	The height of the electric tailgate can be adjusted. The owner can set the final opening height of the tailgate according to the usage habits.
Easy Installation	Most of our customers can successfully install by themselves through our installation instructions.Plug and play(Some models need to be stripped)and no damage to the car body.

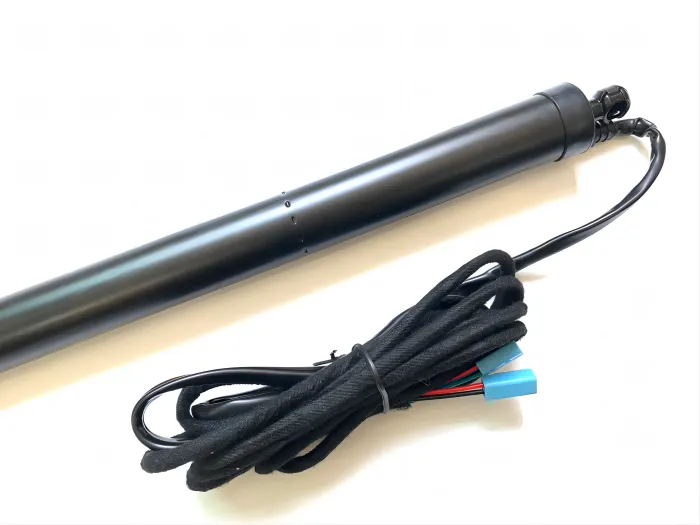

Through the calculation of motion mechanics, the optimal design of the electric strut can be realized by adjusting the torque of the motor, the gearbox ratio, the lead of the screw, and the value of the spring force.
IP67 protection level
Module design. It is possible to complete the trial production of the product in a minimum amount of time and reduce the waiting time of the customer. The form test project can be completed before the design is finalized.
Low working noise - 52Db


Laboratory Test:

Test	Description
Water-Proof Test	Perform IPX4 waterproof rating standard, put the poles in the car, dripping for 10 minutes, flusing for many times.
Salt Spray Test	Place the poles in 5% NACL solution of salt spray for 256 hours, wash the solution with flowing water, rinse with distilled water, stand it for 1-2 hours. Finally check if the pole is rusty.
High Temperature Test	Double pole load balancing. When a pole fails, the door can be prevented from being deformed. When the tailgate fails in a special scene, the system will automatically adjust the closing effort.
Low Temperature Test	When the drive circuit is faulty( low-voltage alarm, over-current protection), it will automatically cut off / automatically recover to ensure the safety of vehicles and equipment.
High and Low Temperature	Ultra-low quiescent current(Standby Current:1 mA). It can avoid that the vehicle can not start without power due to long-term parking.

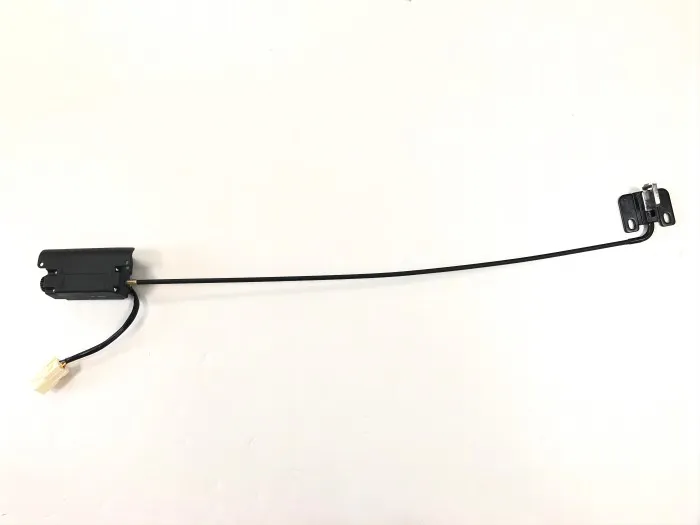

Advantages of Bottom Suction Lock:

1. No damage installation
Use the original car lock mounting hole to install.
2. Safe
Configure the security cable to be pulled down and unlocked under abnormal conditions.
3. No need to debug
Installed in line with the original car.
4. Simple Wiring
Just take the central control to take power, and the rest are on the tailgate, connected to the control box.
5. Price Favorable
The price is cheaper than upper suction lock, highly cost effective
6. Quiet
The door closing action is gentle and there is no impact sound.
7. Long life
All accessories meet China's 3C certification standards, no damage to the installation.



Packaging & Shipping Details:

Single Package Size:	80*23*15cm
Gross  Weight:	6.5kg
Package Type:	Neutral Packing & Color Box
Delivery Time:	In stock: 1-2 working days Out of stock: 5-7 working days



FAQ:

1. How can I get the price?

- We usually quote within 24 hours after we get your inquiry (except weekend and holidays). If you are very urgent to get the price, pls email us or contact us in other ways so that we can offer you a quote.

2. Can I buy samples placing orders?

- Yes. Pls feel free to contact us.

3. What is your delivery time?

- It depends on the order quantity you placed. - Usually we can ship with 3-5 working days, for small quantity, and about 20-25 days for large quantity.

4. What is your payment term?

- T/T, Western Union, PayPal and MoneyGram. This is negotiable.

5. What is the shipping method?

- It could be shipped by air, by sea or by express (EMS, UPS, DHL, FEDEX, TNT and so). Pls confirm with us before placing orders.

6. How do you make our business long-term and good relationship?

- We keep good quality and competitive price to ensure our customers benefit; - We respect every customers as our friend and we sincerely do business and make friends with them, no matter where they come from.

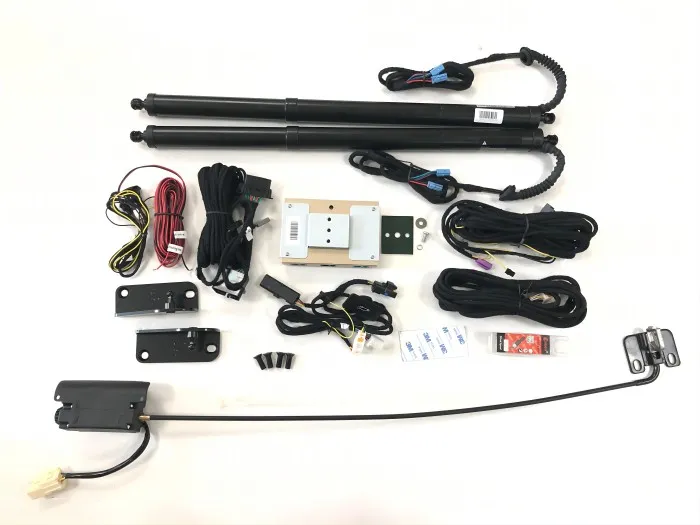

 (ChangAn Cosmos 2019-2022- Power tailgate  lift kit)
wire harness, brakcets, tailgate switch button, front switch button,
blue control box, bottom suction lock, screws, gasket, installation instruction e-edition, warranty card





After-sales Term:

1. Power Tailgate: The warranty period starts from the date of shipment,Warranty period is 12 months. During the warranty period, there is any problems about product quality, you can change the spare parts for free.
2. At the time of installation, if you have any questions or problems, please take pictures and videos, contact our sales staff directly or send an email to info@kaimiao-group.com. We arrange after-sales personnel to respond you within 24 hours.
3. If you have any questions, please contact info@kaimiao-group.com. The final interpretation of the above content belongs to the Dongguan Kaimiao Electronic Technology Co., Ltd



Note:

If you want to ask if your car can install our products, Pls send your car model,which year of your car and send somepictures to us, we will confirm for you as soon as possible.



COMPANY INTRODUCTION


The company's product specifications are more complex and the number of parts is large. Therefore, some parts are produced by themselves, and some parts are purchased from suppliers who work in depth. Whether it is self-production or parts purchased from outside, quality testing is required. We pass a series of machine and equipment inspection tests to confirm that the product has no problems before packaging and shipping. For raw materials, return or exchange of raw materials or spare parts with unqualified quality. For quality qualified raw materials, go through the warehousing procedures. For the finished product, for the products that fail the quality inspection, the rework processing is carried out, and if the rework is not completed, the scrapping treatment is performed.

The company insists on the first quality of service. All products must undergo inspection and testing before shipment. If non-conforming products appear during the inspection and test, mark them first and then isolate them. Then, the registration statistics of the non-conforming products are carried out, and the workshop is notified to carry out the repair. Eliminate the provision of defective products to customers.

Our product has received various certifications , including ECU copyright certificate, ECU patent certificate, Strut patent certificate, Electric latch lock patent certificate, Trunk opening and closing system patent certificate, Linear Strut Structure Patent Certificate, Electric tailgate control system patent certificate, Electric drive gas spring patent certificate, Linear pole invention patent, Car struts patent certificate, Car struts structure patent certificate, IATF16949 Certificate, ISO9001 Certificate and so on.
