【YX - KM379】【INSTALLATION GUIDE】【POWER LIFTGATE】 FOR AUDI A3/S3 SPORTBACK 2013-2020

Mar 25th,2025 1309 Views

ELECTRIC TAILGATE FOR AUDI A3/S3 SPORBACK 2013-2020

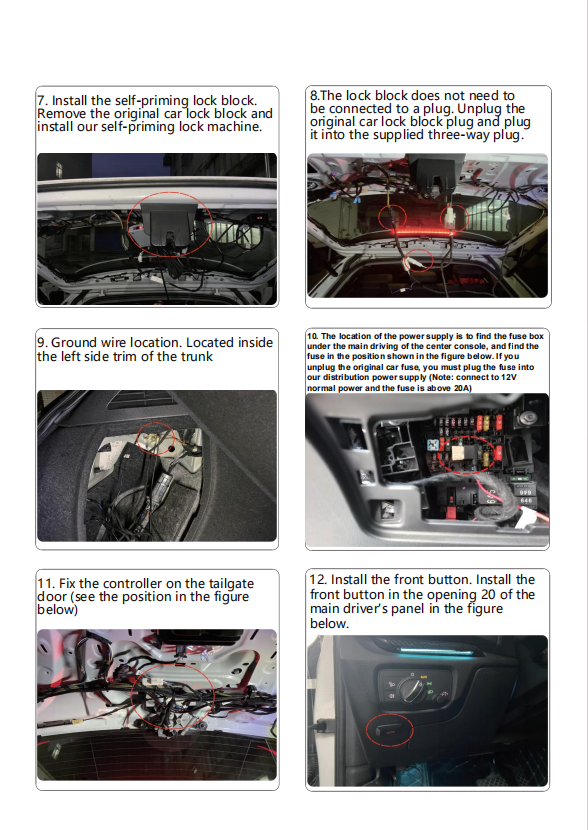

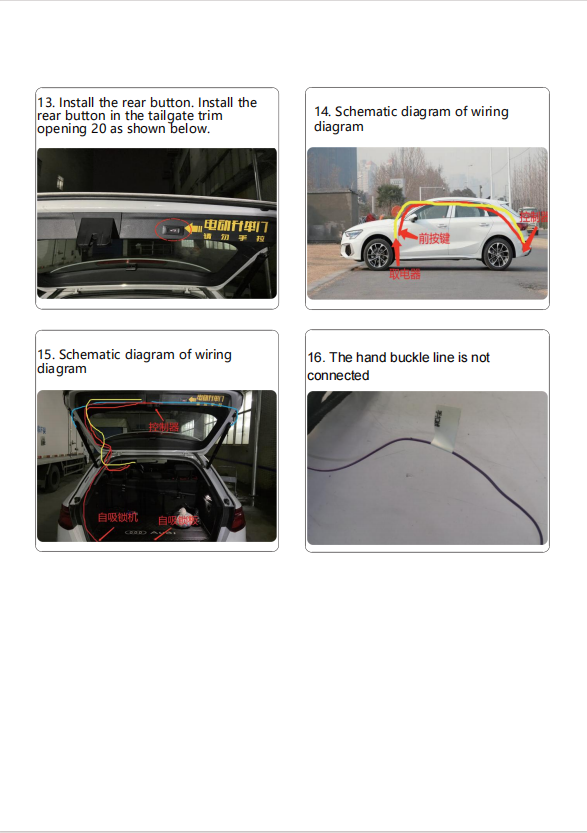

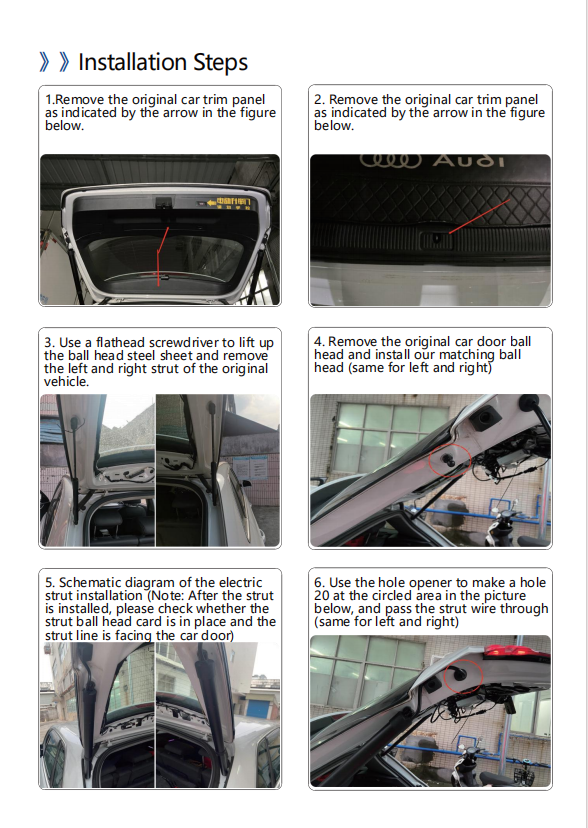

enlightenedCLICK HERE TO DOWNLOAD INSTALLATION MANUAL - AUDI A3/S3 SPORTBACK 2013-2020

1: Height Adjustment

Adjust the tailgate to the appropriate height, press and hold the tailgate button for 5 seconds, and a long beep indicates that the height setting is successful. When it is opened again, it will open to the set height.



2: Speed Adjustment


The tailgate opening and closing speed is divided into 5 gears, with 4 gears by default, 2 gears as the lowest, and 6 gears as the highest. Press and hold the tailgate button, and when you hear the buzzer sound twice in a row, it means that the speed setting is successful at gear 2. When you hear the buzzer sound three times in a row, it means that the speed setting is successful at gear 3, and so on.






We have more than 700 car models for your choice.
If you are interested in our product, welcome to contact us.
If you have ordered our product, and have any problems during installation, welcome to contact us.

mailE-mail: info@kaimiao-group.com
enlightenedWhatsApp: +8613423189468
