What is Automatic Power Tailgate Lift Kit？

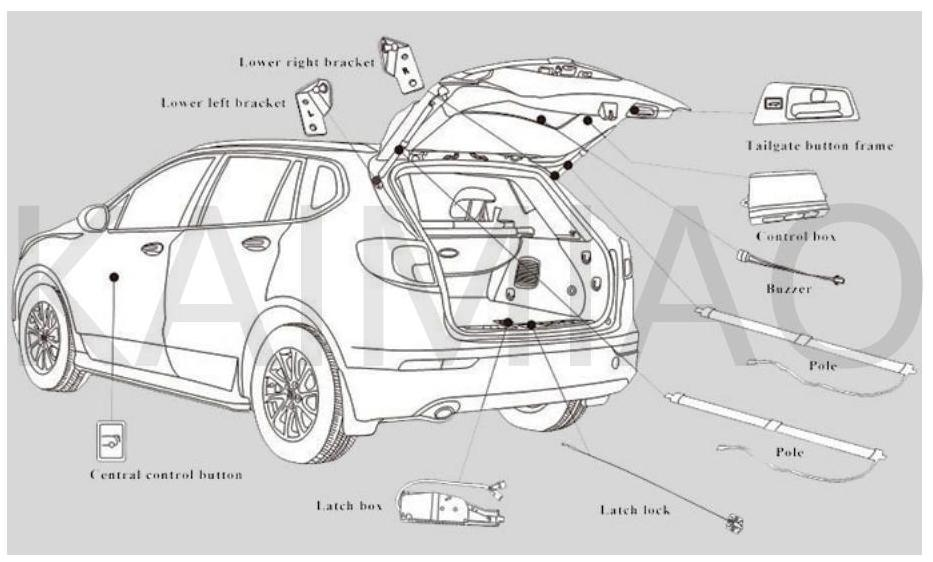

This retrofit power lift assist system opens and closes your rear doors at the touch of a button. It provides extra safety and value to your vehicle. It is designed for do-it-yourself through installation and comes with various brackets depending on your car. It has the functions of hand-in-one opening, intelligent anti-pinch, intelligent height adjustment, etc. The driver can control tailgate with the car key tailgate button. It is easy to control and practical.
Technical Parameters:
| Part Name | Parameters |
| Rated Voltage: | 12V |
| Operating Voltage: | 9-16V |
| Working Current: | 5A (Instantaneous working current: <20A) |
| Operating Temperature: | -30℃ ~ 80℃ |
| Quiescent Current: | <2mA |
| Storage Temperature: | -40℃ ~ 90℃ |
| Box Dimensions: | 161mm*79mm*25mm |
| Remote Control: | Key Fob / Front Dash Button / Back Tailgate Button / Foot (Kick) Sensor (Optional) |
 |
 |
 |
 |

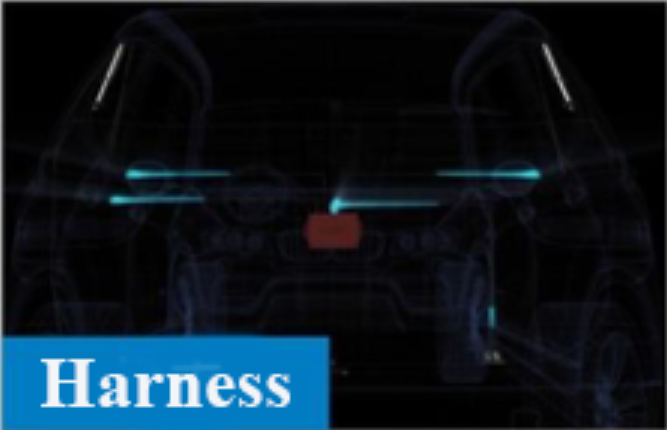

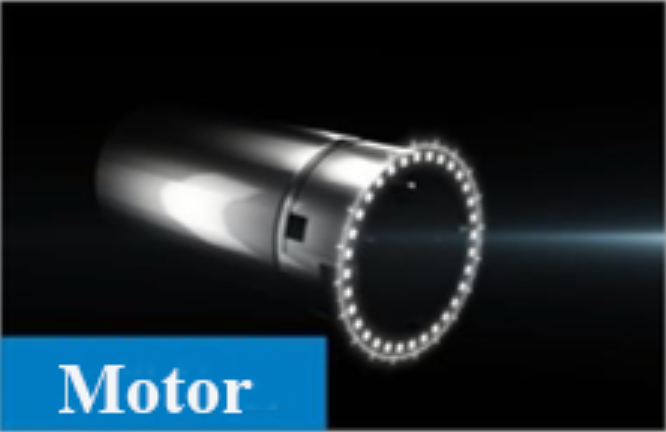

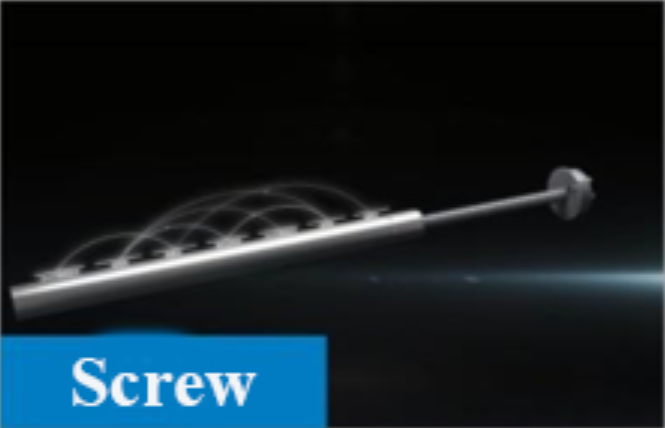

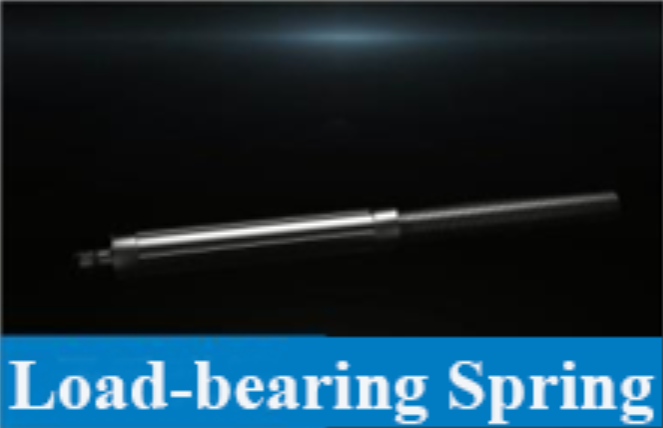

| The motor uses imported components, and equipped with high precision planetary reducer, it has the characteristics of strong power, long life and low noise. | 304 Stainless steel screw, high strength, corrosion resistance and high transmission efficiency. | We use the importes material, reduce the loss of long-term compression and frequent compression values, high and low temperature resistance, longer service life. | Standard car grade copper wire, ensure stable power supply performance. |
 |
 |
 |
 |

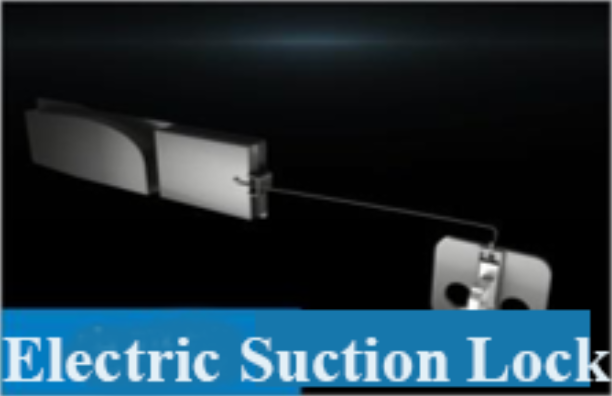

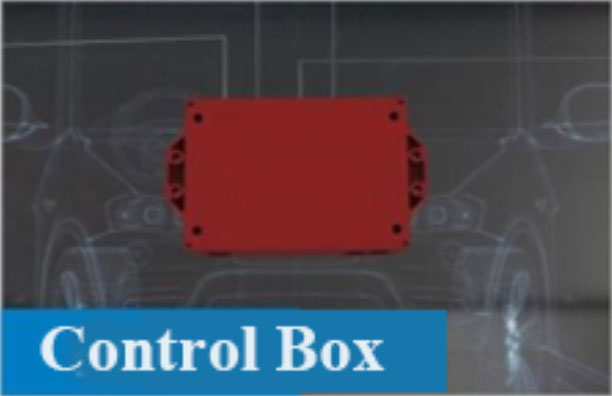

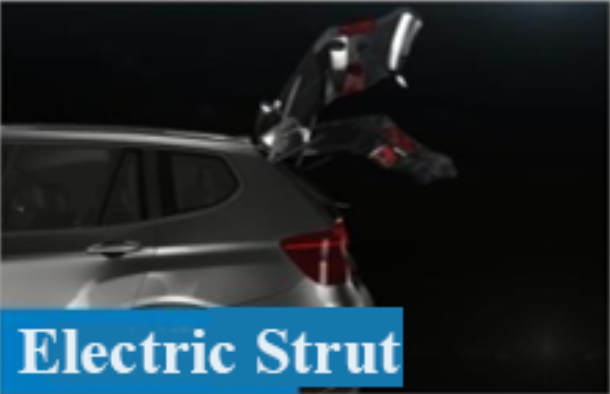

| Double lever intelligent double Hall automatic pivot adjustment protection. Combined with the controller, it can achieve high learning settings, anti-pinch and other functions, achieve comfortable and smooth opening and closing. | When closing the door, the tailgate is automatically pulled and closed by the electric suction lock. Reduce closed gravity. The tailgate locking actuator is driven directly by the intelligent electric tailgate controller, and provide tailgate unlocking status information. | Design expert with 20 years of industrial product background. Use Vehicle-level master chip, built-in intelligent learning algorithm to ensure the safety of the electric tailgate operation, anti-pinch and other functions. | Use Vehicle-level master chip, after the car is locked, the overall standby current of the control box is <1mA, which will not consume the original car battery. |
Packaging & Shipping Details:
| Single Package Size: | 80*23*15cm |
| Gross Weight: | 6.5kg |
| Package Type: | Neutral Packing & Color Box |
| Delivery Time: | In stock: 1-2 working days Out of stock: 5-7 working days |
